Datastores Guide

To specify DB2 as your datastore, define the connection URL as

where "mydb1" is the name of the database.

With DB2 Express-C v9.7 you need to have db2jcc.jar and db2jcc_license_cu.jar in the CLASSPATH.

To specify MySQL/MariaDB as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

MySQL and its more developed drop in replacement MariaDB are supported as an RDBMS datastore by DataNucleus with the following provisos

To specify SQLServer as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

Microsoft SQLServer 2005 JDBC Driver (Recommended)

or using the older Microsoft SQLServer 2000 JDBC Driver

Microsoft SQLServer is supported as an RDBMS datastore by DataNucleus with the following proviso

To specify Oracle as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc) …​ you can also use 'oci' instead of 'thin' depending on your driver.

To specify Sybase as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

To specify SQL Anywhere as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

To specify HSQLDB (server) as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

or HSQLDB (in-memory) like this

HSQLDB is supported as an RDBMS datastore by DataNucleus with the following provisos

H2 is supported as an RDBMS datastore by DataNucleus.

To specify H2 (embedded) as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

To specify Informix as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

For example

Note that some database logging options in Informix do not allow changing autoCommit dinamically. You need to rebuild the database to support it. To rebuild the database refer to Informix documention, but as example,

INDEXOF: Informix 11.x does not have a function to search a string in another string. DataNucleus defines a user defined function DATANUCLEUS_STRPOS which is automatically created on startup. The SQL for the UDF function is:

To specify PostgreSQL as your datastore, you will need something like the following specifying (replacing 'db-name' with name of your database etc)

To specify PostGIS as your datastore, you will need to decide first which geometry library you want to use and then set the connection url accordingly.

For the PostGIS JDBC geometries you will need something like the following specifying (replacing 'db-name' with name of your database etc)

For Oracle’s JGeometry you will need something like the following specifying (replacing 'db-name' with name of your database etc)

For the JTS (Java Topology Suite) geometries you will need something like the following specifying (replacing 'db-name' with name of your database etc)

To specify Apache Derby as your datastore, you will need something like the following specifying (replacing 'db-name' with filename of your database etc)

Above settings are used together with the Apache Derby in embedded mode. The below settings are used in network mode, where the default port number is 1527.

ASCII: Derby 10.1 does not have a function to convert a char into ASCII code. DataNucleus needs such function to converts chars to int values when performing queries converting chars to ints. DataNucleus defines a defined function NUCLEUS_ASCII, which is automatically created on startup. The SQL for the UDF function is:

String.matches(pattern): When pattern argument is a column, DataNucleus defines a function NUCLEUS_MATCHES that allows Derby 10.1 to perform the matches function. The SQL for the UDF function is:

To specify Firebird as your datastore, you will need something like the following specifying (replacing 'db-name' with filename of your database etc)

Firebird is supported as an RDBMS datastore by DataNucleus with the proviso that

To specify NuoDB as your datastore, you will need something like the following specifying (replacing 'db-name' with filename of your database etc)

To specify SAPDB/MaxDB as your datastore, you will need something like the following specifying (replacing 'db-name' with filename of your database etc)

To specify SQLite as your datastore, you will need something like the following specifying (replacing 'db-name' with filename of your database etc)

SQLite is supported as an RDBMS datastore by DataNucleus with the proviso that

To specify Virtuoso as your datastore, you will need something like the following specifying (replacing 'db-name' with filename of your database etc)

To specify Pointbase as your datastore, you will need something like the following specifying (replacing 'db-name' with filename of your database etc)

If you need to pass additional parameters to the JDBC driver you can append these to the end of the datanucleus.ConnectionURL. For example,

When changes are required to be made to an underlying RDBMS datastore, statements are sent via JDBC. A statement is, in general, a single SQL command, and is then executed. In some circumstances the statements due to be sent to the datastore are the same JDBC statement several times. In this case the statement can be batched. This means that a statement is created for the SQL, and it is passed to the datastore with multiple sets of values before being executed. When it is executed the SQL is executed for each of the sets of values. DataNucleus allows statement batching under certain circumstances.

The maximum number of statements that can be included in a batch can be set via a persistence property datanucleus.rdbms.statementBatchLimit. This defaults to 50. If you set it to -1 then there is no maximum limit imposed. Setting it to 0 means that batching is turned off.

It should be noted that while batching sounds essential, it is only of any possible use when the exact same SQL is required to be executed more than 1 times in a row. If a different SQL needs executing between 2 such statements then no batching is possible anyway.. Let’s take an example

In this example the first two statements can be batched together since they are identical and nothing else separates them. All subsequent statements cannot be batched since no two identical statements follow each other.

The statements that DataNucleus currently allows for batching are

Please note that if using MySQL, you should also specify the connection URL with the argument rewriteBatchedStatements=true since MySQL won’t actually batch without this

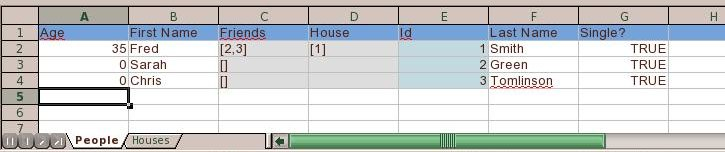

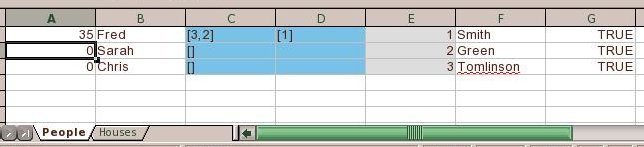

A typical spreadsheet has many rows of data. It contains no names of columns tying the data back to the input object (field names). DataNucleus allows an extension specified at class level called include-column-headers (should be set to true). When the table is then created it will include an extra row (the first row) with the column names from the metadata (or field names if no column names were defined). For example

When persisting a Java object to an XML datastore clearly the user would like some control over the structure of the XML document. Here’s an example using JDO XML MetaData

Things to note :

What is generated with the above is as follows

Here’s the same example using JDO Annotations

Here’s the same example using JPA Annotations (with DataNucleus @Extension annotation) TODO Add this

The persistence to JSON datastore is performed via HTTP methods. HTTP response codes are used to validate the success or failure to perform the operations. The JSON datastore must respect the following:

So taking an example

In this example, the url extension identifies the Person resources/objects as /Person. The persistence operations will be relative to this path. e.g /Person/{primary key} will be used for PUT (update), GET (fetch) and DELETE (delete) methods.

By default each field is mapped to a single column in the datastore, with the family name being the name of the table, and the column name using the name of the field as its basis (but following JDO/JPA naming strategies for the precise column name). You can override this as follows

replacing {familyName} with the family name you want to use, and {qualifierName} with the column name (qualifier name in HBase terminology) you want to use. Alternatively if you don’t want to override the default family name (the table name), then you just omit the "{familyName}:" part and simply specify the column name.

Some metadata extensions (@Extension) have been added to DataNucleus to support some of HBase particular table creation options. The supported attributes at Table creation for a column family are:

To express these options, a format similar to a properties file is used such as:

where:

Let’s take an example applying column family/qualifiers, setting the bloom filter option to ROWKEY, and the in-memory flag to true would look like. Firstly JDO Annotations:-

or using XML

Now JPA Annotations:-

or using XML

Below are some references using this support

Let’s take some example classes, and then describe how these are persisted in Neo4j.

When we persist a Store object, which has an Inventory, which has three Product objects, then we get the following

Note that, to be able to handle polymorphism more easily, if we also have a class Book that extends Product then when we persist an object of this type we will have two entries in "DN_TYPES" for this Node, one with "class" as "mydomain.Book" and one with "class" as "mydomain.Product" so we can interrogate the Index to find the real inheritance level of this Node.

In terms of querying, a JDOQL/JPQL query is converted into a generic query compilation, and then this is attempted to be converted into a Neo4j "Cypher" query. Not all syntaxis are convertable currently and the query falls back to in-memory evauation in that case.

When persisting a Java object to an LDAP datastore clearly the user would like some control over where and how in the LDAP DIT (directory information tree) we are persisting the object. In general Java objects are mapped to LDAP entries and fields of the Java objects are mapped to attributes of the LDAP entries.

The following Java types are supported and stored as single-valued attribute to the LDAP entry:

Arrays, Collections, Sets and Lists of these data types are stored as multi-valued attributes. Please note that when using Arrays and Lists no order could be guaranteed and no duplicate values are allowed!

By default persistable objects are stored as separate LDAP entries. There are some options how to persist relationship references between persistable objects:

It is also possible to store persistable objects embedded. Note that there is inbuilt logic for deciding which of these mapping strategies to use for a relationship. You can explicitly set this with the metadata extension for the field/property mapping-strategy and it can be set to dn or attribute.

Here’s an example using JDO XML MetaData:

For the class as a whole we use the table attribute to set the distinguished name of the container under which to store objects of a type. So, for example, we are mapping all objects of class Group as subordinates to "ou=Groups,dc=example,dc=com". You can also use the extension "dn" to specify the same thing.

For the class as a whole we use the schema attribute to define the object classes of the LDAP entry. So, for example, all objects of type Person are mapped to the common "top,person,organizationalPerson,inetOrgPerson" object classes in LDAP. You can also use the extension "objectClass" to specify the same thing.

For each field we use the column attribute to define the LDAP attribute that we are mapping this field to. So, for example, we map the Group "name" to "cn" in our LDAP. You can also use the extension "attribute" to specify the same thing.

Some resulting LDAP entries would look like this:

Here’s the same example using JDO Annotations:

Here’s the same example using JPA Annotations:

The following are known limitations of the current implementation

A common way to model relationships between LDAP entries is to put the LDAP distinguished name of the referenced LDAP entry to an attribute of the referencing LDAP entry. For example entries with object class groupOfNames use the attribute member which contains distinguished names of the group members.

We just describe 1-N relationship mapping here and distinguish between unidirectional and bidirectional relationships. The metadata for 1-1, N-1 and M-N relationship mapping looks identical, the only difference is whether single-valued or multi-valued attributes are used in LDAP to store the relationships.

Another way to model relationships between LDAP entries is to use attribute matching. This means two entries have the same attribute values. An example of this type of relationship is used by posixGroup and posixAccount object classes were posixGroup.memberUid points to posicAccount.uid.

We just describe 1-N relationship mapping here and distinguish between unidirectional and bidirectional relationships. The metadata for 1-1, N-1 and M-N relationship mapping looks identical, the only difference is whether single-valued or multi-valued attributes are used in LDAP to store the relationships.

As LDAP is a hierarchical data store it is possible to model relationships between LDAP entries using hierarchies. For example organisational structures like departments and their employees are often modeled hierarchical in LDAP. It is possible to map 1-1 and N-1/1-N relationships using LDAP hierarchies.

The main challenge with hierarchical mapping is that the distinguished name (DN) of children depends on the DN of their parent. Therefore each child class needs a reference to the parent class. The parent class metadata defines a (fixed) LDAP DN that is used as container for all objects of the parent type. The child class metadata contains a dynamic part in its DN definition. This dynamic part contains the name of the field holding the reference to the parent object, the name is surrounded by curly braces. This dynamic DN is the indicator for DataNucleus to use hierarchical mapping. The reference field itself won’t be persisted as attribute because it is used as dynamic parameter. If you query for child objects DataNucleus starts a larger LDAP search to find the objects (the container DN of the parent class as search base and subtree scope).

With JDO it is possible to persist field(s) as embedded. This may be useful for LDAP datastores where often many attributes are stored within one entry however logically they describe different objects.

Let’s assume we have the following entry in our directory:

This entry contains multiple type of information: a person, its address and its account data. So we will create the following Java classes:

The JDO metadata to map these objects to one LDAP entry would look like this:
