DataNucleus and NetBeans 7.0

Perhaps the most important step in developing applications with DataNucleus is the enhancement of compiled classes. NetBeans provides a convenient way of integrating this procedure into the build process without the need for any additional tool or plugin. This is possible because NetBeans has native integration with Maven and Ant. Any DataNucleus project based on Maven will open and run as is with Netbeans. No changes are needed in the project nor in Netbeans. When using Ant Class enhancement thus becomes a simple matter of adding a new task to the existing build.xml generated by NetBeans.

This tutorial shows how to integrate DataNucleus with NetBeans 7.0 to simplify the development of JDO applications. Please contribute any updates to this guide that you have since the developers of DataNucleus don't use Netbeans

Requirements

The following components are required to complete this tutorial successfully:


Working with Maven-based DataNucleus Project

NetBeans has native integration with Maven. If your project builds with Maven then it will also build with NetBeans without any change. Unzip the sample project to $home/DNSamples/datanucleus-samples-jdo-tutorial-3.0

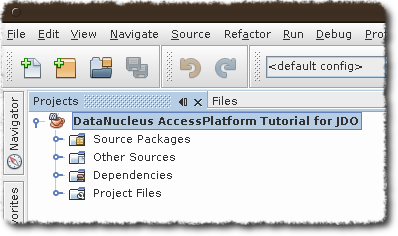

The sample project comes with a pom.xml. When you try to open this project NetBeans will automatically detect it as maven project.

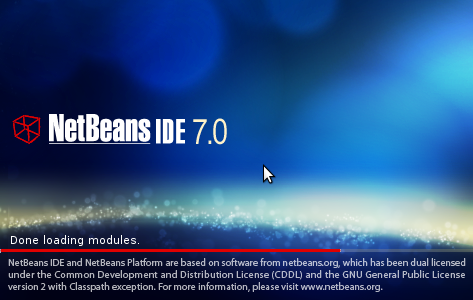

Start Netbeans

Start NetBeans

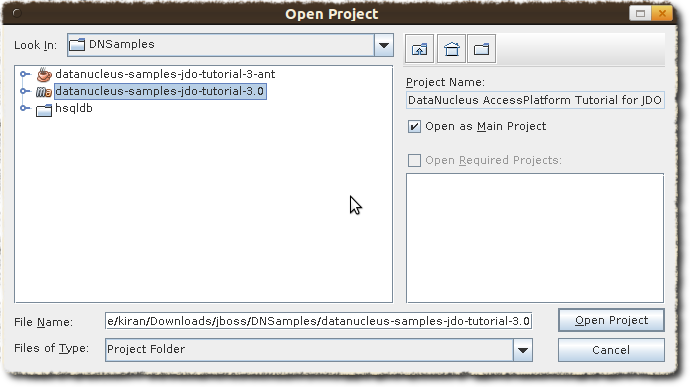

Open Maven Project

Open Maven Project

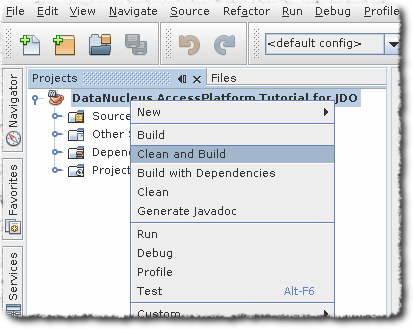

Clean Build the project

Maven Clean Build

You will see a success message as below

------------------------------------------------------------------------
BUILD SUCCESS
------------------------------------------------------------------------
Total time: 5.406s
Finished at: Fri Aug 05 09:23:53 IST 2011
Final Memory: 14M/108M
------------------------------------------------------------------------

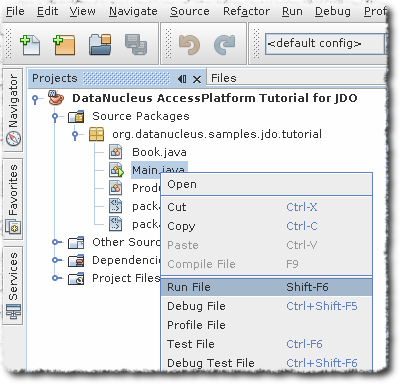

Run Main Class

Run Maven Project

The results can be seen in the output window

DataNucleus AccessPlatform with JDO
===================================
Persisting products
Product and Book have been persisted

Retrieving Extent for Products
>>  Book : JRR Tolkien - Lord of the Rings by Tolkien
>>  Product : Sony Discman [A standard discman from Sony]

Executing Query for Products with price below 150.00
>>  Book : JRR Tolkien - Lord of the Rings by Tolkien

Deleting all products from persistence
Deleted 2 products

End of Tutorial
------------------------------------------------------------------------
BUILD SUCCESS
------------------------------------------------------------------------
Total time: 6.221s
Finished at: Fri Aug 05 09:27:43 IST 2011
Final Memory: 7M/106M
------------------------------------------------------------------------

Setting up NetBeans for DataNucleus ANT use

The first thing to do is to register the DataNucleus components in the Library Manager of NetBeans 7 so that these become available to any project created with the IDE. This involves creating a new library and adding the JAR files to it, as shown in the following screenshots

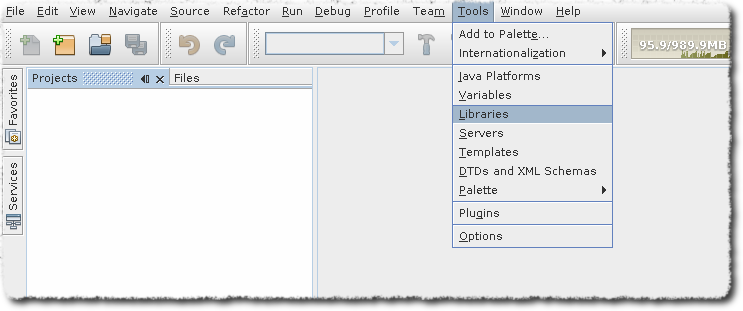

Open Library Manager

LibraryManager

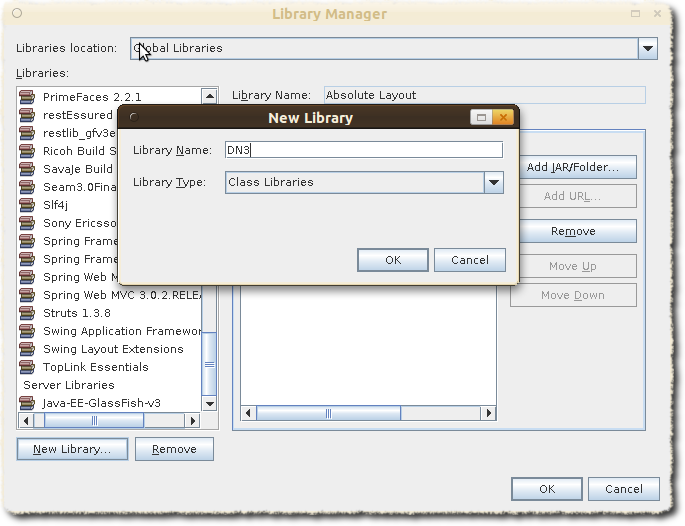

Add New Library with Name DN3 - Repeat the process for DN3Deps

Add DN3

Add all the libraries under $home/datanucleus-accessplatform-full-deps-3.0.0-release/lib to DN3. Add all the libraries under $home/datanucleus-accessplatform-full-deps-3.0.0-release/deps to DN3Deps

LibraryManger

Once this is done, the NetBeans 7 will add the JAR files to the classpath whenever the newly-created DN3 and DN3Deps library is selected for a project.


Setting up a new project

Delete pom.xml from the downloaded samples project. NetBeans treats any folder with pom.xml as maven project. Copy the datanucleus.properties to src/java in the downloaded samples project.

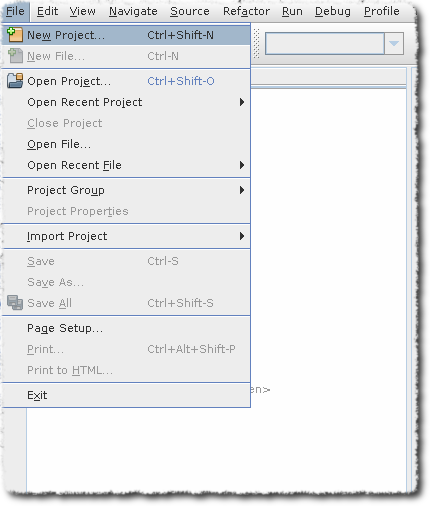

Now create a new project from existing sources.

Ant New Project

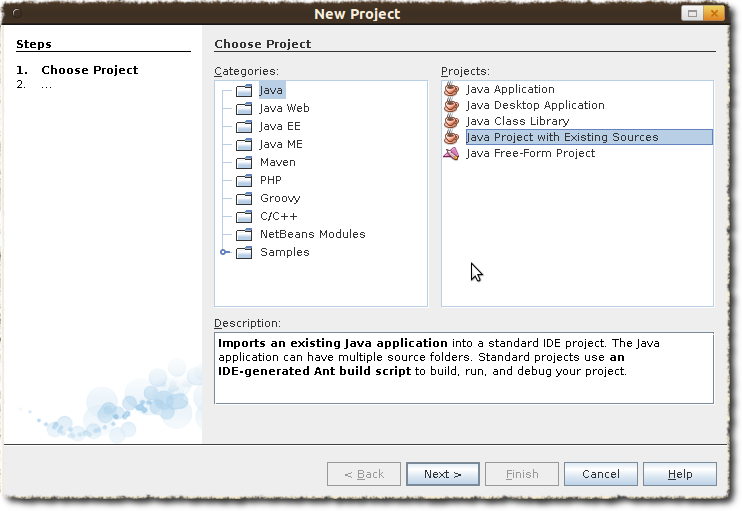

Remember to Select Java Project with Existing Source

New Project

Click Next and Add Folder. The source folder should point to datanucleus-samples-jdo-tutorial-3.0/src/java

select src folder

Then click Next and Finish

Now we have the sucessfuly created the sample project using Ant

Ant Project Created

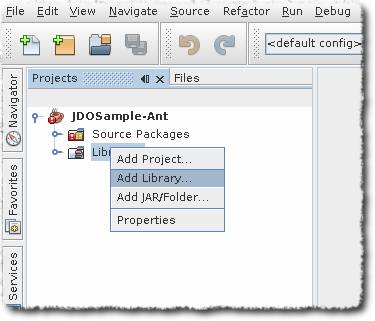

Add the Libraries created in first set to this project. Right-Click on Libraries in the Projects Tab

Ant Add library

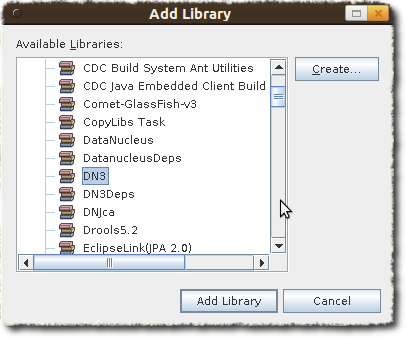

Add DN3 library to your project. Also add DN3Deps

Add DN3

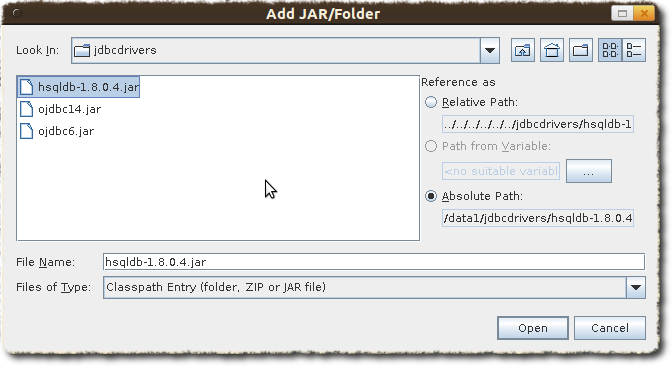

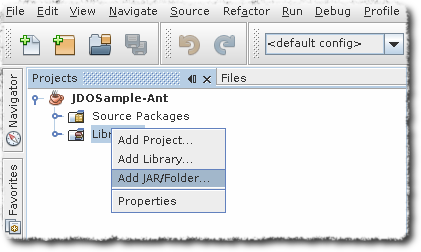

We also need to add JDBC support to our project. Add this using add Add jars option. Right-Click on Libraries in the Projects Tab and select Add jars

Add Jar

Add hsqldb

add jdbc

Enhancing the classes

The enhancement process needs to be defined and integrated into the build process. As stated in the introduction, this requires a simple change to the nbbuild.xml file.

TypeSafe Queries :- Datanucleus generates addtional code for supporting type safe queries. Ensure that "Enable Annotation processing" check box is selected, which is under Project Properties | build | compiling

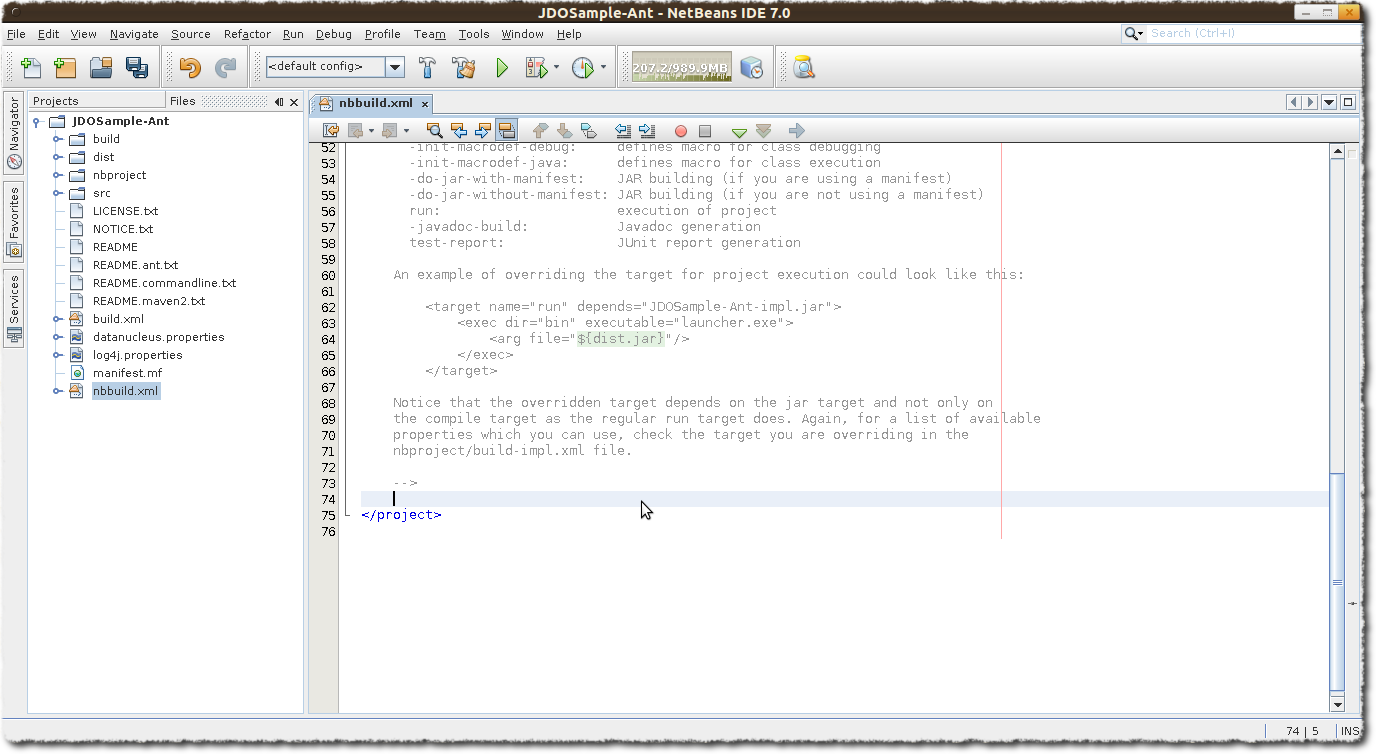

Click on the Files tab, expand the project tree, then open nbbuild.xml

Locate Build File

Override the -post-compile task/target with the following Ant instructions.

<target name="-post-compile" depends="init">
    <path id="module.enhancer.classpath">
        <pathelement path="${javac.classpath}"/>
        <pathelement location="${build.classes.dir}"/>
    </path>
    <taskdef name="datanucleusenhancer" classpathref="module.enhancer.classpath" classname="org.datanucleus.enhancer.EnhancerTask"/>
    <echo message="start datanucleusenhancer"/>
    <datanucleusenhancer classpathref="module.enhancer.classpath" dir="${build.classes.dir}" verbose="true">
        <fileset dir="${build.classes.dir}">
            <include name="**/*.class"/>
        </fileset>
    </datanucleusenhancer>
    <echo message="end datanucleusenhancer"/>
</target>

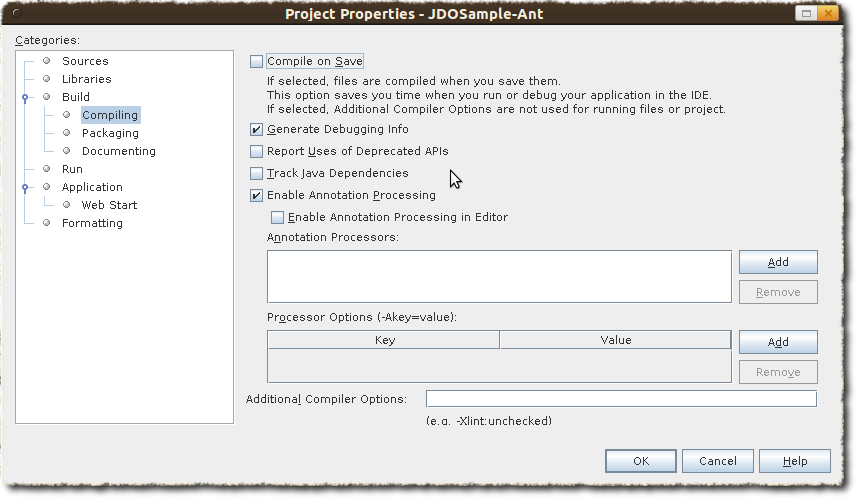

This target is the most convenient for enhancing classes because it occurs just after all classes have been compiled and is called in any case, whether the project is being built, tested or deployed. This ensures that classes are always enhanced. Ensure that the Compile on Save option is turned off. Enable Annotation Processing should be turned ON

Project Properties

Building the project

The project can now be built, with the knowledge that the classes will be enhanced in the process.

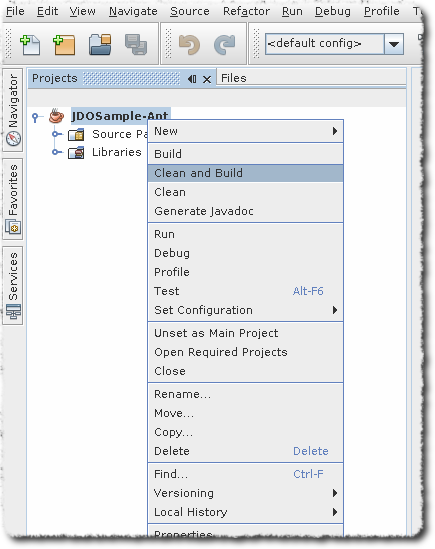

ant clean and build

Output window will show some thing similar to this

BUILD SUCCESSFUL (total time: 2 seconds)

Run the main class
The output window will show as below

Product and Book have been persisted

Retrieving Extent for Products
>>  Book : JRR Tolkien - Lord of the Rings by Tolkien
>>  Product : Sony Discman [A standard discman from Sony]

Executing Query for Products with price below 150.00
>>  Book : JRR Tolkien - Lord of the Rings by Tolkien

Deleting all products from persistence
Deleted 2 products

End of Tutorial
BUILD SUCCESSFUL (total time: 2 seconds)

Conclusion

This concludes our tutorial on how to integrate DataNucleus with NetBeans 7. As can be seen, thanks to NetBeans project system based on Ant and Native Maven support, development of JDO applications is largely simplified. This tutorial was provided by a user of this software, Kiran Kumar.
